Scaling Up Data Workflows

with Arrow, Parquet, and DuckDB

Neal Richardson

useR! Conference 2025

August 10, 2025

😂

😭

🧠

🤯

Example

US Census Public Use Microdata Sample (PUMS)

• 53 million rows

• 311 columns

• 45 GB in CSVs on disk

• ~80 GB in memory in R (if it were possible)

Example

With arrow, it is possible

library(arrow)
library(dplyr)
library(tictoc)

pums_person <- open_dataset("./data/person")

tic()
pums_person |>
  filter(year == 2021, grepl("Subway|Light rail", JWTRNS)) |>
  summarize(n = sum(PWGTP)) |>
  collect()

## # A tibble: 1 × 1
##         n
##     <int>
## 1 1495898
toc()

## 0.157 sec elapsed

How does this work?

1. Parquet files for storing data on disk

2. Dataset: data chunked into meaningful partitions (files)

3. Arrow’s fast query engine, computing in parallel across chunks of data

There’s a book!

20% off with code 25AFLY3

arrowrbook.com

1. Parquet files

• Open standard file format for storing data on disk

• Arrow : Memory :: Parquet : Disk

• Widely adopted across big data ecosystem, implemented in many languages

CSV vs. Parquet

• Row vs. column orientation: Parquet is columnar (like R and Arrow)

• Columnar allows selected reading of data: we usually don’t need all columns

• Columnar allows better compression and encoding

• Types: rich type system in Parquet, including nested and complex types

• Types are preserved in schema, not inferred at read time

• High fidelity, smaller file sizes, faster reads

Reading and writing Parquet files

library(arrow)

# Write a Parquet file
write_parquet(mtcars, "mtcars.parquet")

# Read a Parquet file
mtcars_parquet <- read_parquet("mtcars.parquet")

Reading and writing Parquet files

library(nanoparquet)

# Write a Parquet file
write_parquet(mtcars, "mtcars.parquet")

# Read a Parquet file
mtcars_parquet <- read_parquet("mtcars.parquet")

nanoparquet vs. arrow Reader

• nanoparquet
  • Lightweight Parquet reader
  • Minimal dependencies
  • Good for embedding
• arrow
  • Full-featured reader
  • Support for datasets
  • Integration with Arrow ecosystem

2. Datasets and partitioning

pums_person

## FileSystemDataset with 884 Parquet files
## 311 columns
## SPORDER: int32
## RT: dictionary<values=string, indices=int32>
## SERIALNO: string
## PUMA: string
## ST: string
## ADJUST: int32
## PWGTP: int32
...

2. Datasets and partitioning

pums_person$files[1:10] |> stringr::str_replace("^.*data/person/", "")

##  [1] "year=2005/location=ak/part-0.parquet"
##  [2] "year=2005/location=al/part-0.parquet"
##  [3] "year=2005/location=ar/part-0.parquet"
##  [4] "year=2005/location=az/part-0.parquet"
##  [5] "year=2005/location=ca/part-0.parquet"
##  [6] "year=2005/location=co/part-0.parquet"
##  [7] "year=2005/location=ct/part-0.parquet"
##  [8] "year=2005/location=dc/part-0.parquet"
##  [9] "year=2005/location=de/part-0.parquet"
## [10] "year=2005/location=fl/part-0.parquet"

“Hive-style partitioning”: both column names and values are encoded in the file path

2. Datasets and partitioning

• Convention: directory (or bucket in cloud storage) of Parquet files with a common schema

• We can split data into files called partitions based on the values of one or more columns

• When we query it, can skip over files that don’t match our query

2. Datasets and partitioning

Example query from before:

pums_person |>
  filter(year == 2021, grepl("Subway|Light rail", JWTRNS)) |>
  summarize(n = sum(PWGTP)) |>
  collect()

We didn’t have to scan 884 files, we only had to scan the 52 files that contain data for the year 2021:

pums_person$files |>
  stringr::str_detect("year=2021") |>
  sum()

## [1] 52

How to (re)partition with arrow

my_dataset <- open_csv_dataset(path = "./data/my-oversized-csv.csv")

my_dataset |>
  mutate(year = year(datetime), month = month(datetime)) |>
  write_dataset(
    path = "./data/my-much-nicer-parquet-dataset",
    partitioning = c("year", "month")
  )

• Can point at a single large file that you can’t read into memory: arrow can process in chunks

• Can use a dataset that already has partitions and write to new partitions

Optimal partitioning

It depends!

• What queries you will run

• Number of unique values in partition columns

• Too many partitions –> too many files, lose the benefits of column orientation and compression

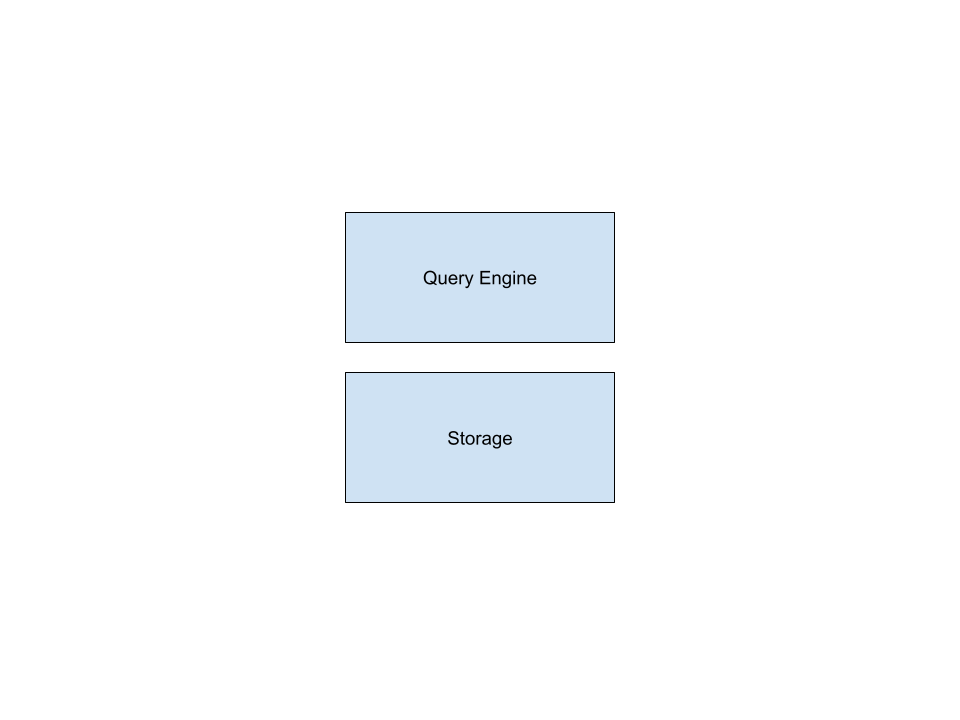

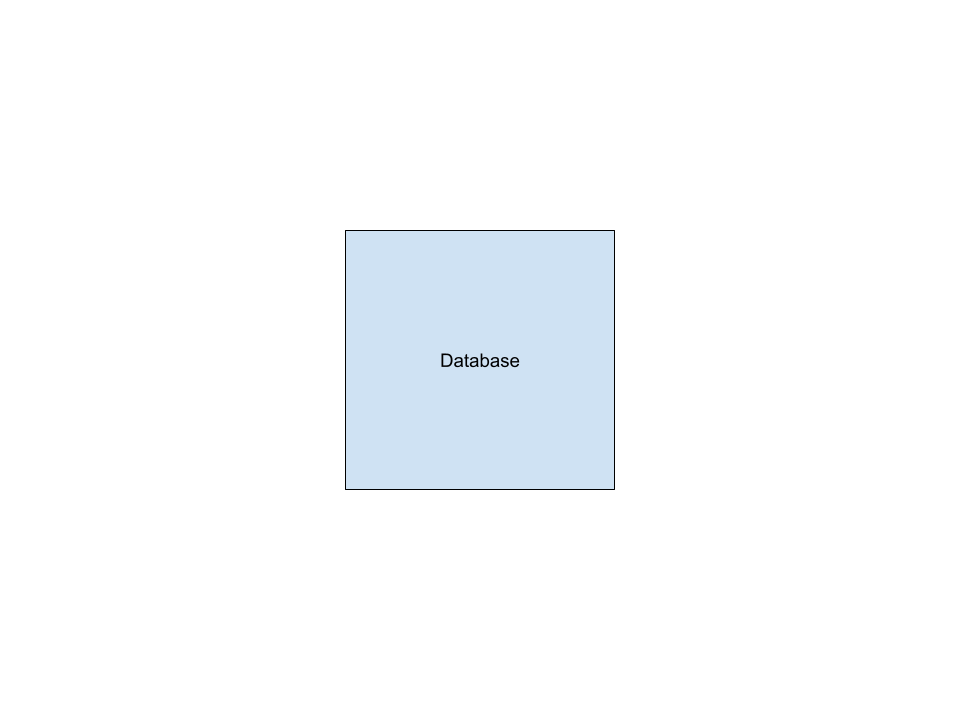

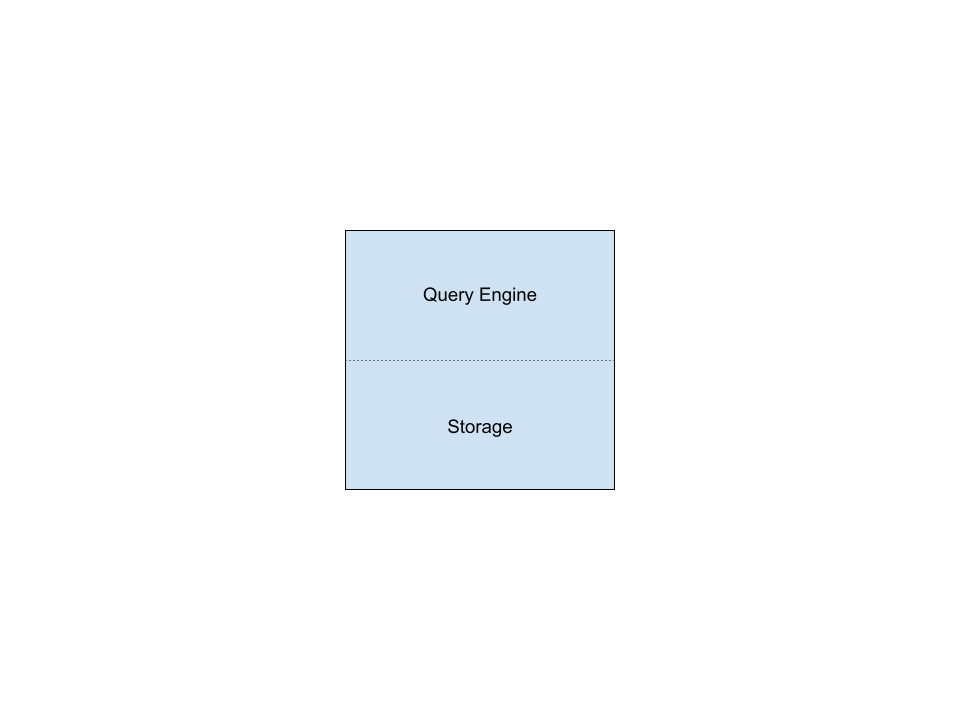

3. Query engines

Query planning and lazy evaluation

pums_person |>
  filter(year == 2021, grepl("Subway|Light rail", JWTRNS)) |>
  summarize(n = sum(PWGTP)) |>
  collect()

• Each step builds up a query, like dbplyr

• No computation happens until collect()

• This allows optimizations: only need 52 files and 2 columns, not 884 files and 311 columns

arrow has great dplyr support

• Currently: 222 R functions, 37 dplyr verbs

• All the things you’d expect from dbplyr

• Deep support for stringr and lubridate

arrow has great dplyr support

pums_person |>
  filter(AGEP > 18) |>
  transmute(
    higher_education = stringr::str_detect(SCHL, "(Bach|Mast|Prof|Doct|college|degree)")
  )

## FileSystemDataset (query)
## higher_education: bool (match_substring_regex(SCHL, {pattern="(Bach|Mast|Prof|Doct|college|degree)", ignore_case=false}))
##
## * Filter: (AGEP > 18)
## See $.data for the source Arrow object

arrow has great dplyr support

• Currently: 222 R functions, 37 dplyr verbs

• All the things you’d expect from dbplyr

• Deep support for stringr and lubridate

• Additional arrow compute functions (280) available

• User-defined functions (UDFs): write your own R function and run in the arrow query engine

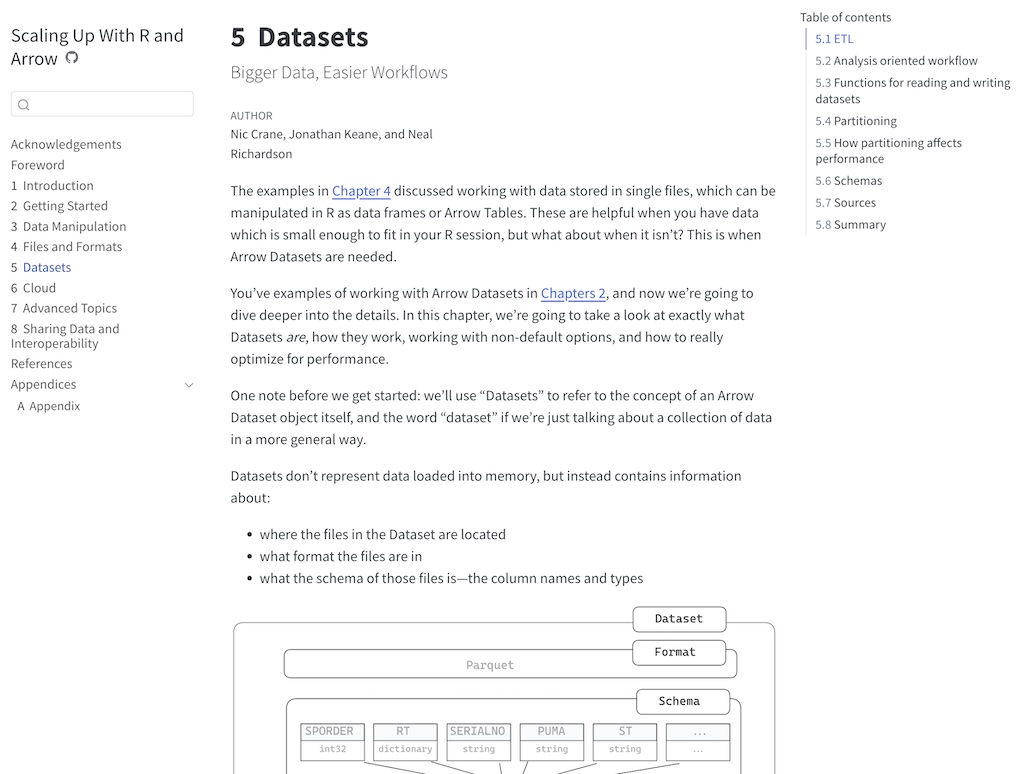

Book chapter

List of supported functions

Should I use arrow or duckdb?

Yes!

• For many workflows, either one will serve just fine

• Historically, arrow has had richer dplyr integration

• If you need advanced SQL features, use duckdb

• Mostly a matter of preference

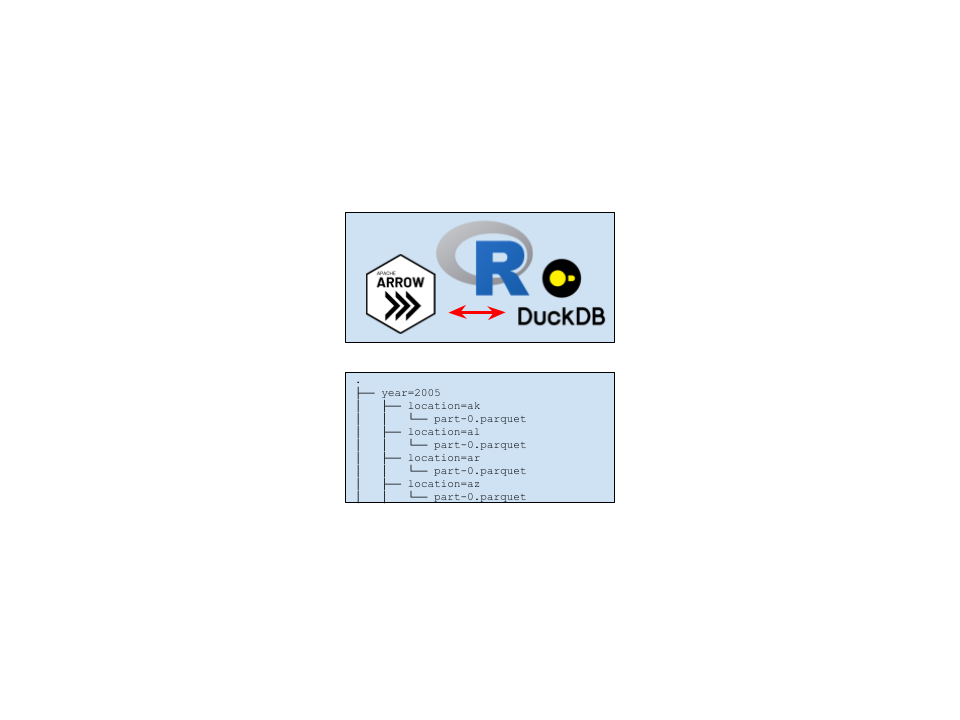

arrow and duckdb

pums_person |>
  group_by(location) |>
  summarize(
    max_commute = max(JWMNP, na.rm = TRUE),
    min_commute = min(JWMNP, na.rm = TRUE)
  ) |>
  to_duckdb() |> # send data to duckdb
  pivot_longer(!location, names_to = "metric") |>
  to_arrow() |> # return data back to arrow
  collect()

arrow and duckdb

open_dataset("gs://anonymous@scaling-arrow-pums/person/") |>
  to_duckdb(table_name = "pums8") |>
  dbplyr::remote_con() |>
  DBI::dbGetQuery("
    SELECT
      year,
      SUM(AGEP * PWGTP) / SUM(PWGTP) AS mean_age
    FROM (SELECT * FROM pums8 WHERE location = 'wa')
    GROUP BY year")

Key takeaways

• Use Parquet files

• Split large datasets into partitions based on common query patterns

• Run modern query engines (arrow, duckdb) on your machine: just install from CRAN, no need for a big compute cluster or service

• The arrow package provides a lot of this all in one. But if you need something lighterweight or more specialized, you have options (nanoparquet, nanoarrow, duckdb, etc.)

• The Arrow format is the key to this modern data stack. It is what allows all of these tools to work together and share data efficiently

Resources

These slides

Arrow R package

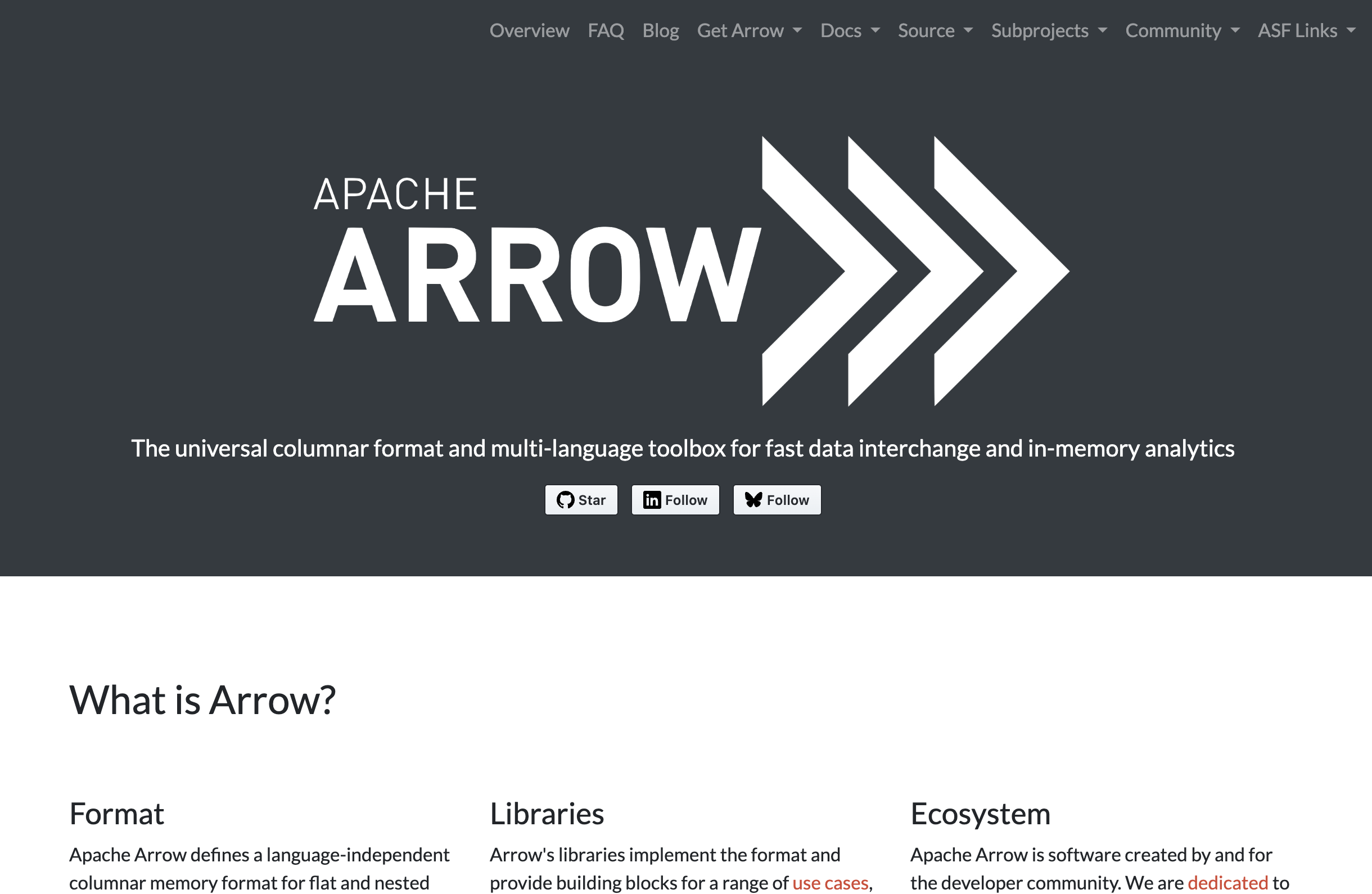

Arrow project

Book website

Buy a copy

Save 20% with 25AFLY3

Me

Working with cloud storage

pums_s3 <- open_dataset("s3://scaling-arrow-pums/person/")

# Query execution with lazy evaluation
pums_s3 |>
  filter(year == 2021, location == "ca", AGEP >= 16) |>
  group_by(year, ST) |>
  summarize(
    mean_commute_time = sum(JWMNP * PWGTP, na.rm = TRUE) /
      sum(PWGTP),
    count = n()
  ) |>
  collect()

Working with cloud storage

pums_bucket <- s3_bucket("scaling-arrow-pums")
pums_s3 <- open_dataset(pums_bucket$path("person"))

# Query execution with lazy evaluation
pums_s3 |>
  filter(year == 2021, location == "ca", AGEP >= 16) |>
  group_by(year, ST) |>
  summarize(
    mean_commute_time = sum(JWMNP * PWGTP, na.rm = TRUE) /
      sum(PWGTP),
    count = n()
  ) |>
  collect()
